26Nov2013 - Bought a set of SS bolts and allen keys for my handle bar

I went to bolts and nuts shop to source some stainless steel bolts.

Rear signal broke after replacement, vibration of the exhaust caused it to break.

25Nov2013 - I've sent MA to Mofaz for warranty purposes

.Handle lock has been fixed.



Front smoked signal LED lamp's rubber has been replaced.



 Battery Replaced

Rectifier Replaced

Rear shocks has been rotated and adjusted.

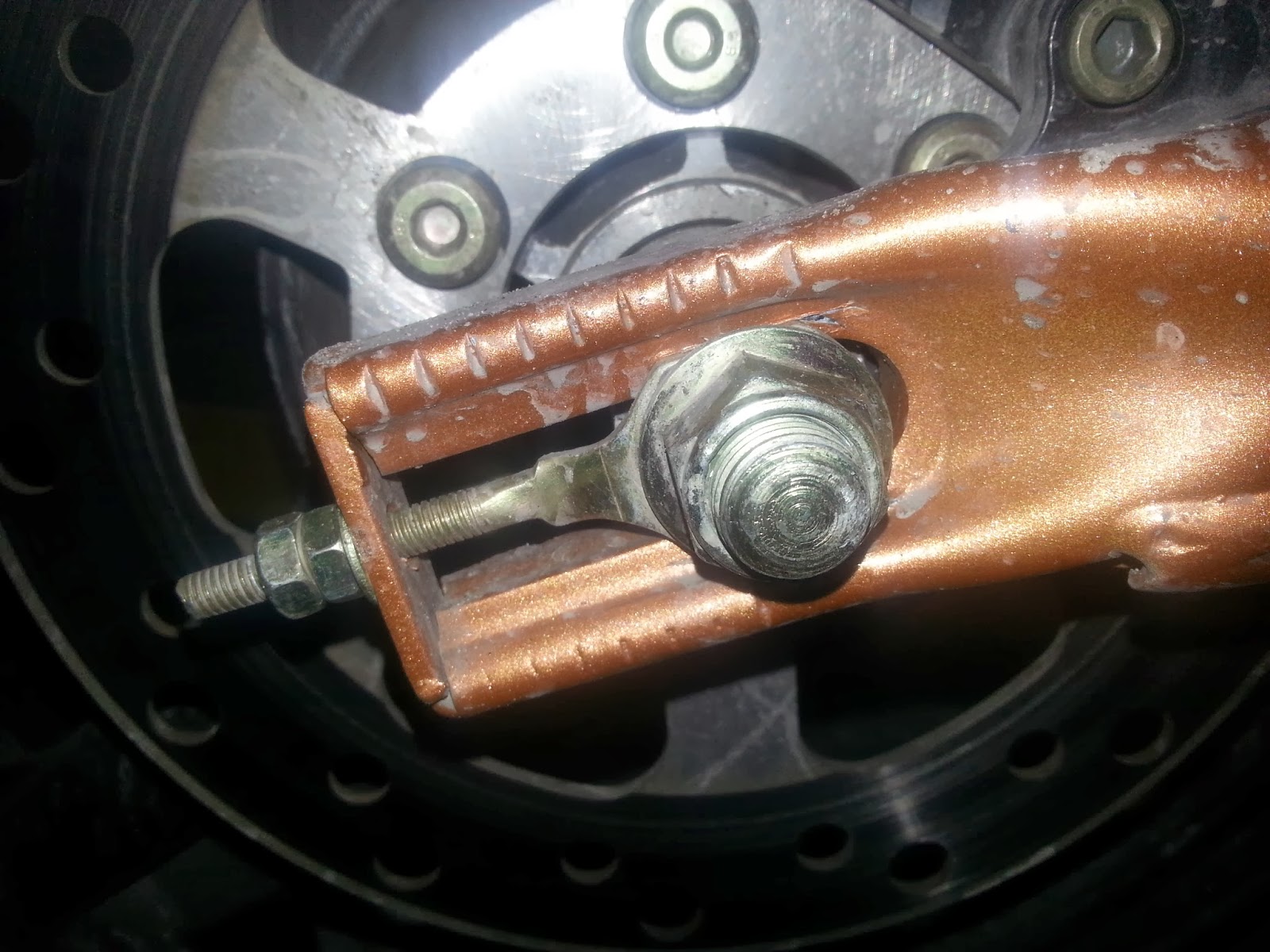

Chain tension has been adjusted.

Suddenly there's a sticker replaced PETRONAS recommendation of 15-40W.

24Nov2013 - A shot of video clip before I went to work



23Nov2013 - Just a picture of it parked under my workplace

22Nov2013 - Checking The Rectifier, Starter Solenoid, CDI, Battery and Connections



20Nov2013 - Broken Cable Lead Tube

I'm gonna remove this tube soon.

19 Nov2013 - Replaced Rear Brake Screws With SS Socket Cap Screws

Rear Muffler Upper Bracket Strengthened

One of the side were not properly welded, as you can see in the photo where the square nut has one tack welded on the upper right.

 Closer look.

Tig welded it with a few tack on it, on the left.

Some Chrome Stuff Taken From Another Bike

18Nov2013 - DIY Tail Lamp Replacement

Madass Owners Group (MOG)

The gathering was held in NZ Restaurant Cafe at 4.30pm, Sunday 16 November 2013.

This is my first time attending such event, I'm glad to be there. There is a lot other bikers riding different machine especially those ladies riding big machines. They were like standing toe to toe when they are on the machine.

The gathering ended quite late, had meetings with the president and vice president regarding the new t-shirts and some other agenda.

There is 20-30 Madass 125 from different years of production.

15Nov2013 - Getting Rid Of The Cat

I after measuring the pipe from the header, it's 1 inch plus OD which I couldn't find any in my nearest hardware shop so I end up buying a few 304 stainless steel adapter which are use for water plumbing and luckily it has the same ID as measured on the header's pipe.

I had no idea regarding the exhaust's steel material but I know it is made of SS and that is white I get 3 SS fittings.

I TIG welded them together and took out the pipe and do mock up using sharpie and tack weld a few spots. It took quite some time to measure, mark, tack, install back to the bike, make adjustment, weld and install.

The cat doesn't contain any ceramic materials like cars or anything, it is just a small restrictive baffle with a sharp edge which doesn't give any good flow from the start to the end of he baffle (cat).
